Van Den Hul The Cleartrack Bi-wire Speaker Cable Per Metre (Ships Next Day) - C-Plan Audio

Van Den Hul The Cleartrack Bi-wire Speaker Cable Per Metre (Ships Next Day)

Van Den Hul

  • R 590.00
  • Save R 100.00

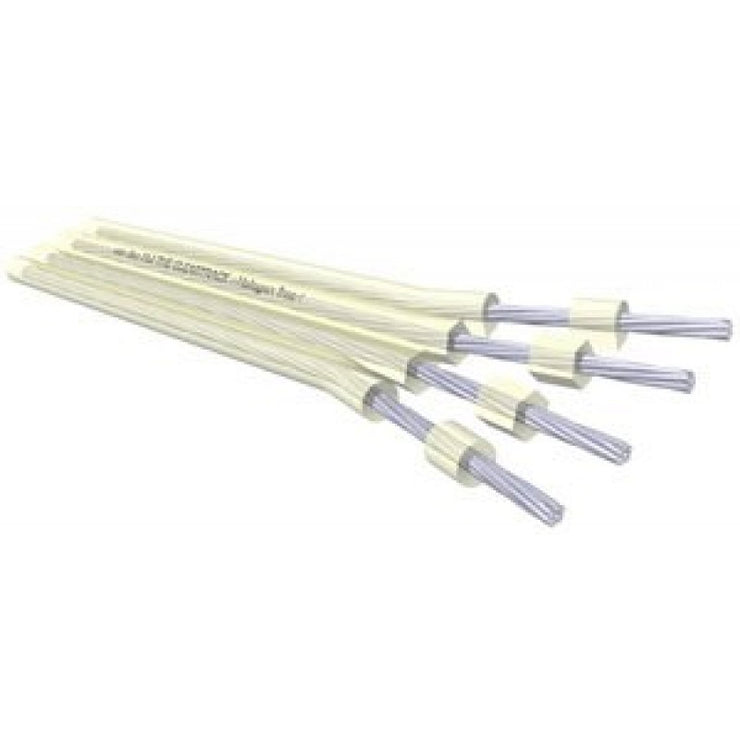

The CLEARTRACK is an elegant flexible quadruple conductor loudspeaker cable with outstanding qualities.
The CLEARTRACK is a member of our AWG 14 quadruple lead / bi-wiring loudspeaker cable range.

Each of its four leads contain 98 high purity dense Silver coated high purity Matched Crystal OFC strands with an effective cross-section area of 1.97 mm², closely approaching AWG 14.

  • The resistance of each lead is 0.9 Ohm per 100 m.
  • The capacitance between two adjacent leads is a low 45 pF/m.
  • The CLEARTRACK is 16.5 mm. wide and 4.2 mm. thick.

The cable’s jacket is made of transparent HULLIFLEX ® 3, a robust halogen free material excellently capable of shielding the copper conductors from the chemically threatening outside world.
Sonically this cable is a great product with a very balanced overall quality and outstanding clarity.

Polarity determination is simple: the four conductors have different insulator shapes, furthermore, one set has two cuts and the other set has only one cut and a flat surface at the other side with type printing.

Printing at 25 cm. (10") distance allows easy cutting of lengths.
It is advised to use the two inside conductors as the cold (-) leads and both outer conductors as the hot (+) leads.

THE CLEARTRACK (HALOGEN FREE)
material Silverplated Copper OFC
product category speaker cable - Quad-lead, Bi wiring, Bi amping, Entry-level
cable type Quadruple conductor
conductor material High purity dense Silver coated high purity Matched Crystal OFC
design purpose Loudspeaker bi-wiring cable
eff conductor 4x(1.97 mm² / ~AWG 14 / 98)
external diameter 16.5 mm. wide; 4.2 mm. thick
jacket colors Transparent
resistance 0.9 Ohm/100 m.
capacitance ~45 pF/m.
insulation

HULLIFLEX ® 3 / 300 Vrms min.

connector types

When combining leads into pairs (e.g. as twin lead speaker cable or at amplifier side of bi-wiring cable): Our 4.0 mm. Ø cable entrance diameter Bus type Universal Speaker Connectors or our 6.5 mm. Ø cable entrance diameter BERRI Bus Connectors; Custom mountable on any length ordered;
For termination of individual leads: Our 3.0 mm. Ø cable entrance diameter Bus type Universal Speaker Connectors or our 4.5 mm. Ø cable entrance diameter BERRI Bus Connectors or our DIY Screw-On Speaker Connectors; All custom mountable on any length ordered.

standard sales units

100 m. reels; With connectors mounted to specifications: any length; Without connectors: please consult your van den Hul dealer or the van den Hul distributor in your country.

With connectors mounted the cable is also available in stereo pairs (i.e. two separate cables) in the following standard configurations:
Bi-amping configuration: Each of both cables having 4 connectors at the amplifier side and 4 connectors at the speaker side.
Bi-wiring configuration: Each of both cables having 2 connectors at the amplifier side and 4 connectors at the speaker side.
Normal wiring configuration: Each of both cables having 2 connectors at the amplifier side and 2 connectors at the speaker side.

remarks

Is a quadruple lead / bi-wiring version of The CLEARWATER
