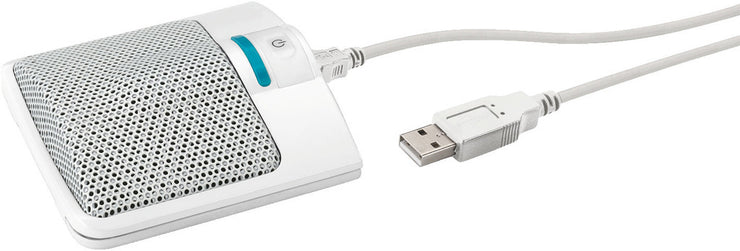

Monacor ECM-306BU/WS Boundary Microphone (In Stock)
Monacor ECM-306BU/WS Boundary Microphone (In Stock) is backordered and will ship as soon as it is back in stock.
Pickup available at Shop
Usually ready in 5+ days
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
Monacor ECM-306BU/WS Boundary Microphone (In Stock)
Highlight title
Text to highlight a key feature of your product
Description
Description
- For operating directly at a PC or laptop
- No driver installation required, device will be identified automatically
- Integrated A/D converter: 48 kHz/16 bits
- Power LED
- Additional headphone connection: 3.5 mm jack
- 1.2 m connection cable with micro USB/USB Type-A plug
- Rear cutout for fixed installation (e.g. wall mounting)
| ECM-306BU/WS | |
|---|---|
| Description | boundary microphone |
| Version | USB |
| Transmission method | cable |
| Polar pattern | semi-cardioid |
| System | electret |
| Audio frequency range | 50-18,000 Hz |
| Sensitivity | 3.2 mV/Pa |
| S/N ratio | 55 dB |
| Max. sound pressure | 110 dB |
| Power supply | DC 5 V via USB interface |
| Admiss. ambient temp. | 0-40 °C |
| Dimensions | 90 x 25 x 90 mm |
| Weight | 187 g |
| Cable | 1.2 m |
| Connection | micro USB/USB Type-A plug |
| Packing dimensions (W x H x L) | 0.19 x 0.057 x 0.145 m |
| Gross weight | 0.38 kg |
| Net weight | 0.225 kg |
| ECM-306BU/WS | |
|---|---|
| Sampling rates | 48 kHz |
| Resolution | 16 Bit |
