Programmable MIDI Foot Controller / Expression Pedal (Midiplus SPY)
Regular price
R 990.00
Fully programmable MIDI controller for sending custom MIDI CC and control messages.
The SPY pedal controller has an exquisite structure, ready to use out of the box, and can be carried at any time to help you complete every need.

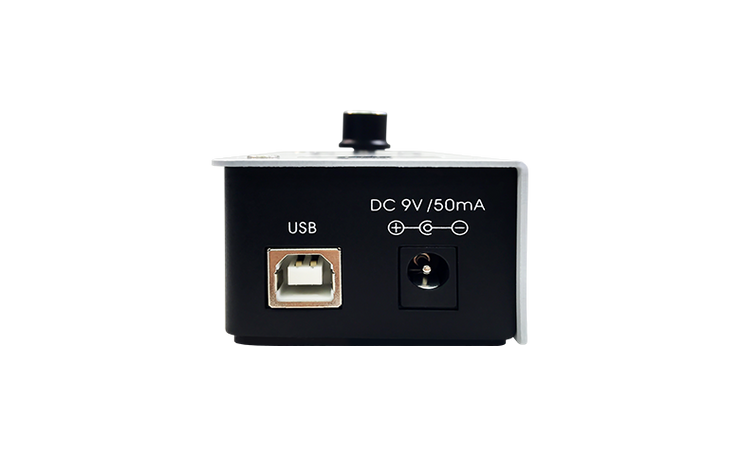

SPY pedal controllers USB interface can turn the expression pedal and switch pedal into USB signal.

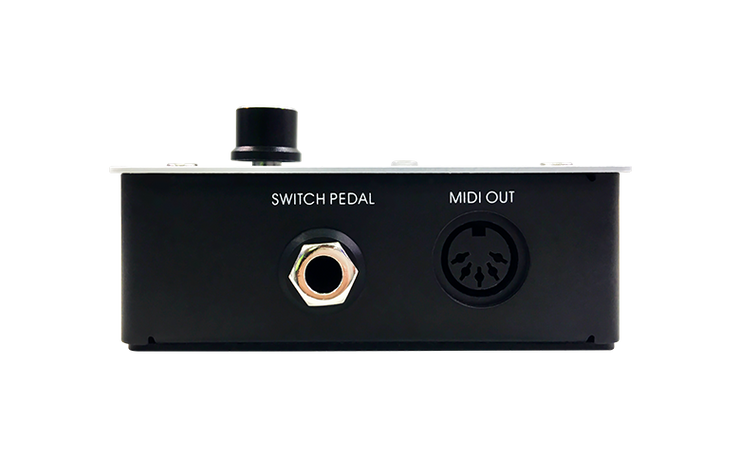

The expression pedal interface is compatible with most expression pedals and supports pedal calibration, switch pedal interface can be connected to 2 switch pedals to use up and down change sound.

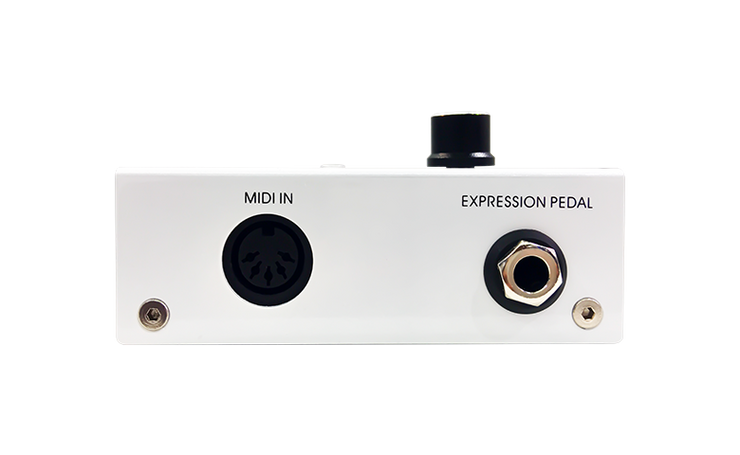

The MIDI output & input interface are compatible with all MIDI devices, and the expression pedal can define the assigned CC value.
Dimension：
10 x 3.3 x 5 (cm) ｜ 3.9 x 1.2 x 1.9 (in)
Weight：
0.24 (kg)｜ 0.52 (lb)
Attachment：
Manualx1
Color：
White
SPY
With a thick structure, its knob function allows you to assign the expression pedal to any MIDI CC, non-slip rubber pad, and adjustable encoder.
product features
Interface specifications
▸ 3 bit 7-segment LED display screen
▸ The expression pedal can define the assigned CC value
▸ Expression pedal input, switch pedal input
▸ MIDI output / input
▸ The MIDI output input interface are compatible with all MIDI devices
Other specifications
▸ Product design metal shell
▸ the bottom with anti-skid pads
Accepts an expression pedal • You plug a standard TRS expression pedal into the SPY input. • It reads the continuous sweep (0–127 range).
Works with most standard expression pedals (Roland, M-Audio, etc.). ⸻
Converts to MIDI data Yes — the SPY converts the movement into MIDI CC messages. ⸻
Fully assignable CC number
You can set the CC number (e.g., CC11, CC7, CC1, CC74 etc.). Useful for volume, wah, filter, parameter morphing, etc. ⸻
MIDI channel assignable You can set the MIDI channel (1–16). ⸻
Output format • Sends MIDI via 5-pin DIN OUT • Also works over USB MIDI ⸻
Extra useful features (often overlooked) • Min/max calibration (important for sweep accuracy) • Curve response adjustment (for smoother control feel) • Polarity handling (works with most pedals) ⸻
Practical note (important for your setup) For what you typically do with MIDIPlus and pedals: The SPY is purely a converter It does not merge MIDI or process multiple inputs It sends only one expression stream at a time So it’s perfect when: • You need expression → MIDI for synth/module control • You want CC control into DAW/plugins • You’re expanding a MIDI controller lacking expression
